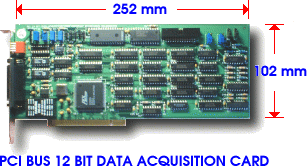

The PCI bus 12 bit data acquisition card is a 32 bits PCI bus adapter with Plug and Play (PnP) features, it is a programmable I/O interface for Pentium or compatible computers. The PnP features let hardware configuration for IRQ and I/O address is detected by BIOS automatically, you don¡¦t need set switch and jumper.

The PCI bus 12 bit data acquisition card is a high precision data conversion/acquisition system. It contains 16 analog to digital channels with unipolar or bipolar input, 2 digital to analog channels with unipolar or bipolar output and 1 digital I/O channel with 16 bit line. The on board 8254 (71054) chip provides programmable interval timer/counter functions to trig A/D conversion. The PCI bus 12 bit data acquisition card also provides interrupt driven for convention A/D input.
¡@
The features of the PCI bus 12 bit data acquisition adapter are:

32 bits PCI bus with Plug and Play (PnP) features.
Programmable I/O control functions.
Provides 16 A/D channels and the resolution is 12 bits.
Provides 2 D/A channels and the resolution is 12 bits.
Unipolar or bipolar selectable.
Input voltage range from 0 to 10V or 0 to 20V for unipolar, and from -5V to 5V or -10V to 10V for bipolar.
Provides 1 digital input/digital output channels and the resolution is 16 bits.
Provides three 16 bits counter to trig A/D conversion.
Provides software, external hardware signal or internal counter to trig A/D conversion.
By using sampling and hold to get A/D signals.
Interrupt or polling driven selectable.
Gain control factor selectable from 1 to 8.

Check that your PCI bus 12 bit data acquisition package includes the following items:
PCI bus 12 bit data acquisition adapter.
User manual.
Software utilities.
Warranty form.
